Advanced Fractional CO2 Laser for Skin Resurfacing and Rejuvenation

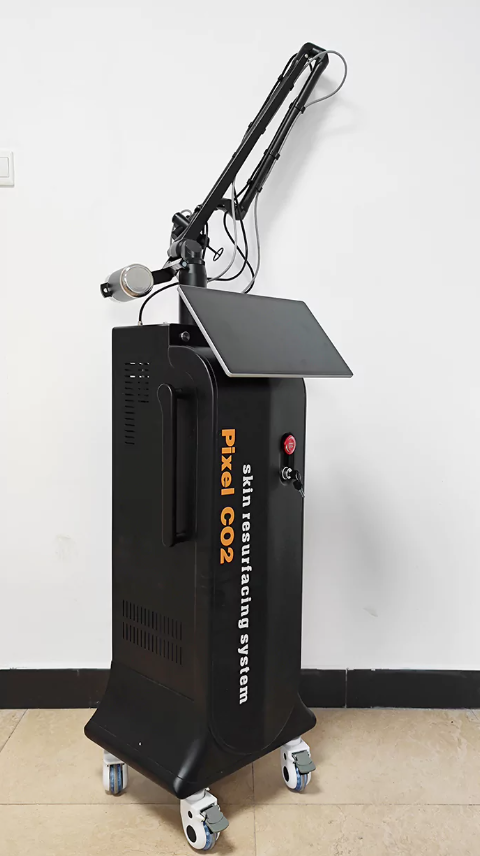

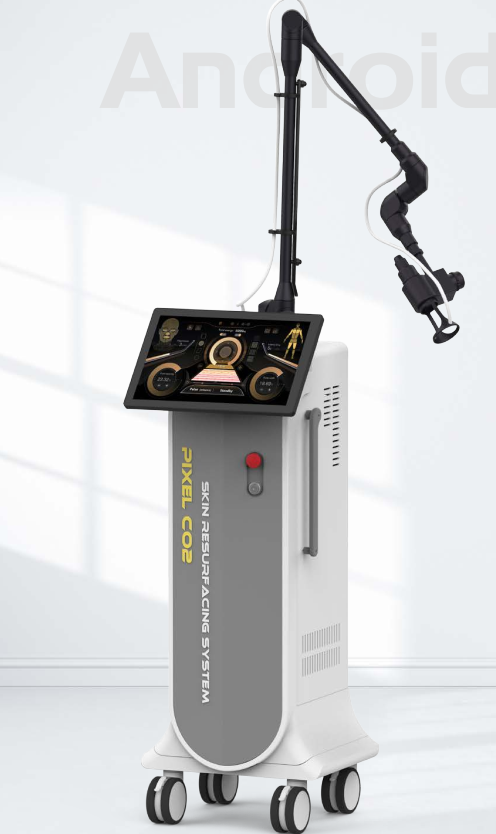

Pixel SuperPulse CO2 FX-F01 is a professional fractional CO2 laser designed for aesthetic clinics and beauty professionals who require precision, performance, and reliable control. Operating at 10.6 μm, the system supports a wide range of skin resurfacing and rejuvenation treatments.
Key Benefits
-
supports skin resurfacing and rejuvenation
-
helps improve wrinkles and fine lines
-
suitable for scar appearance improvement
-
helps refine uneven skin texture
-
supports collagen and elastin stimulation
-
precise energy delivery
-
multiple working modes for flexible treatments
Treatment Applications
Suitable for treatments focused on:
-
wrinkles and fine lines
-
scar appearance improvement
-
uneven skin texture
-
enlarged pores
-
signs of skin aging
-
skin revitalization
-
pigmentation irregularities
-
stretch marks

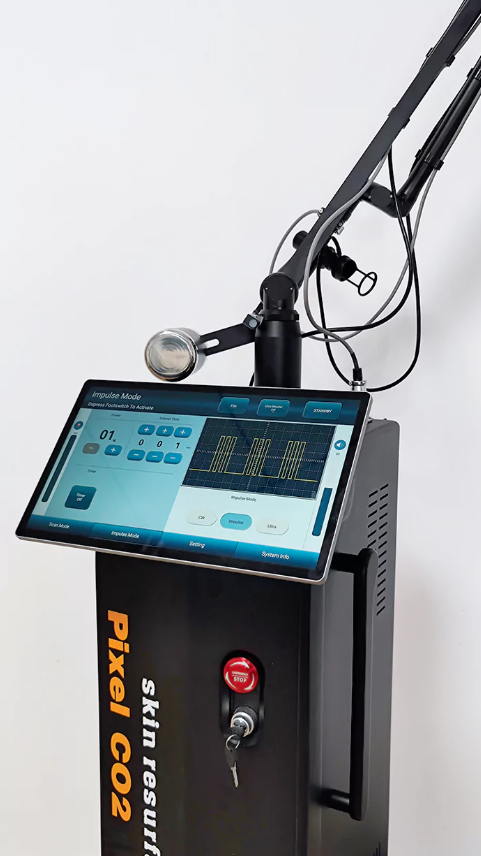

Working Modes
The system supports multiple treatment modes, including:
-
fractional mode
-
ablative mode
-
pulse mode
-
ultra pulse mode
-
continuous mode
-
combined mode

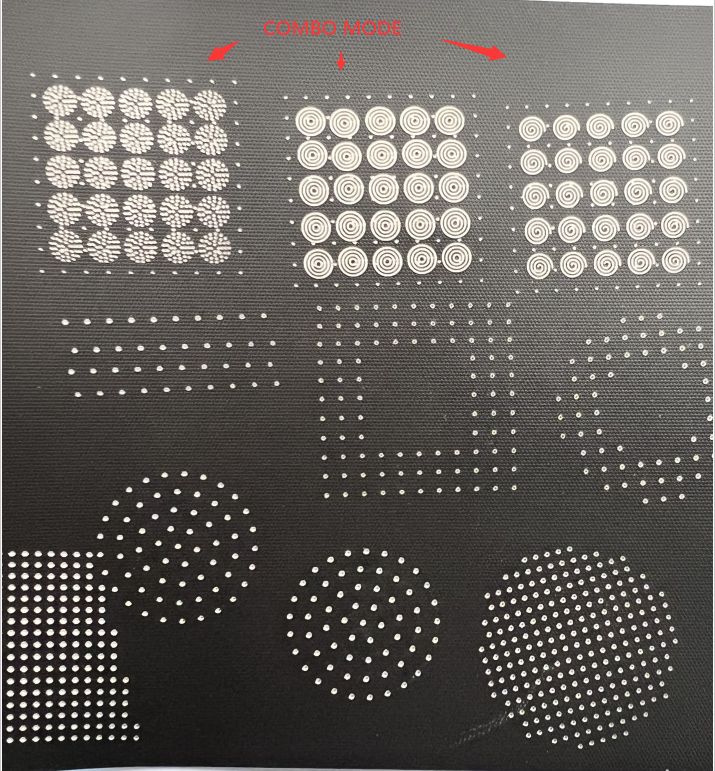

Scanning Options

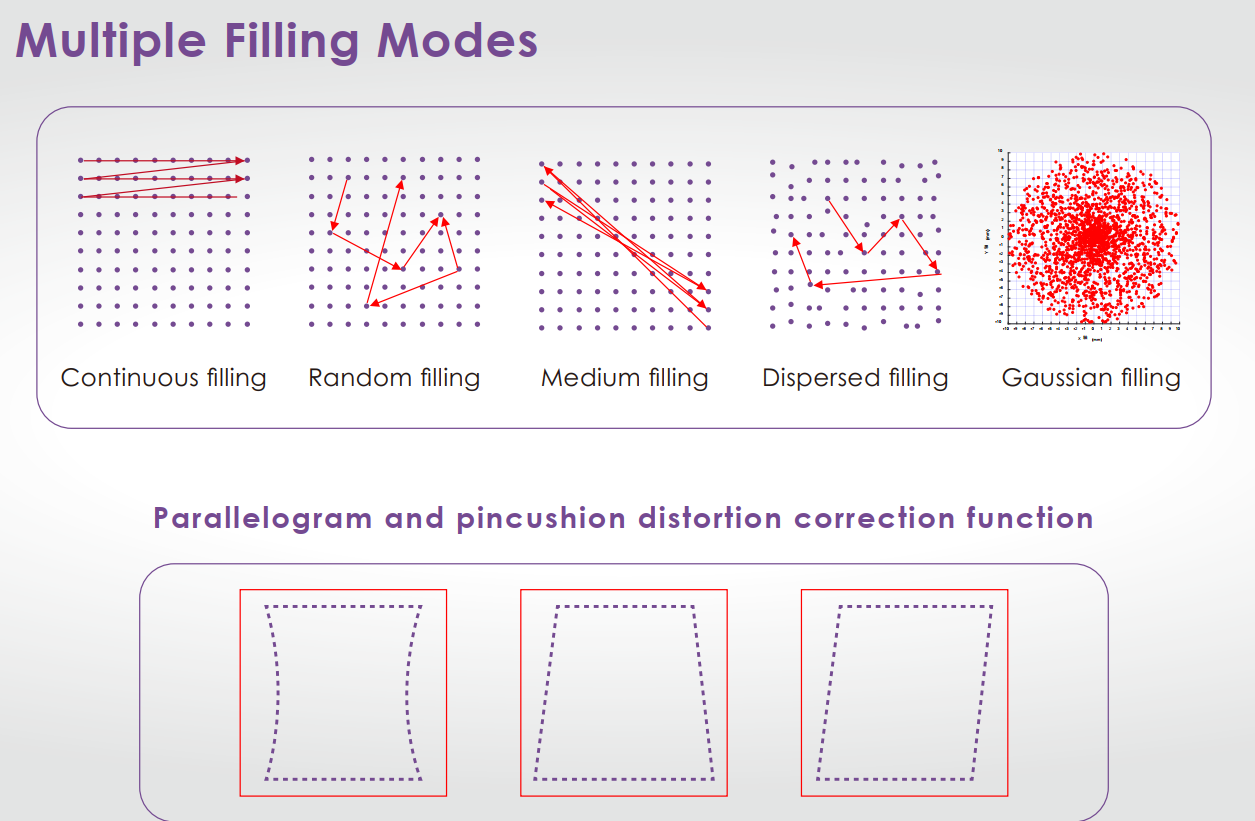

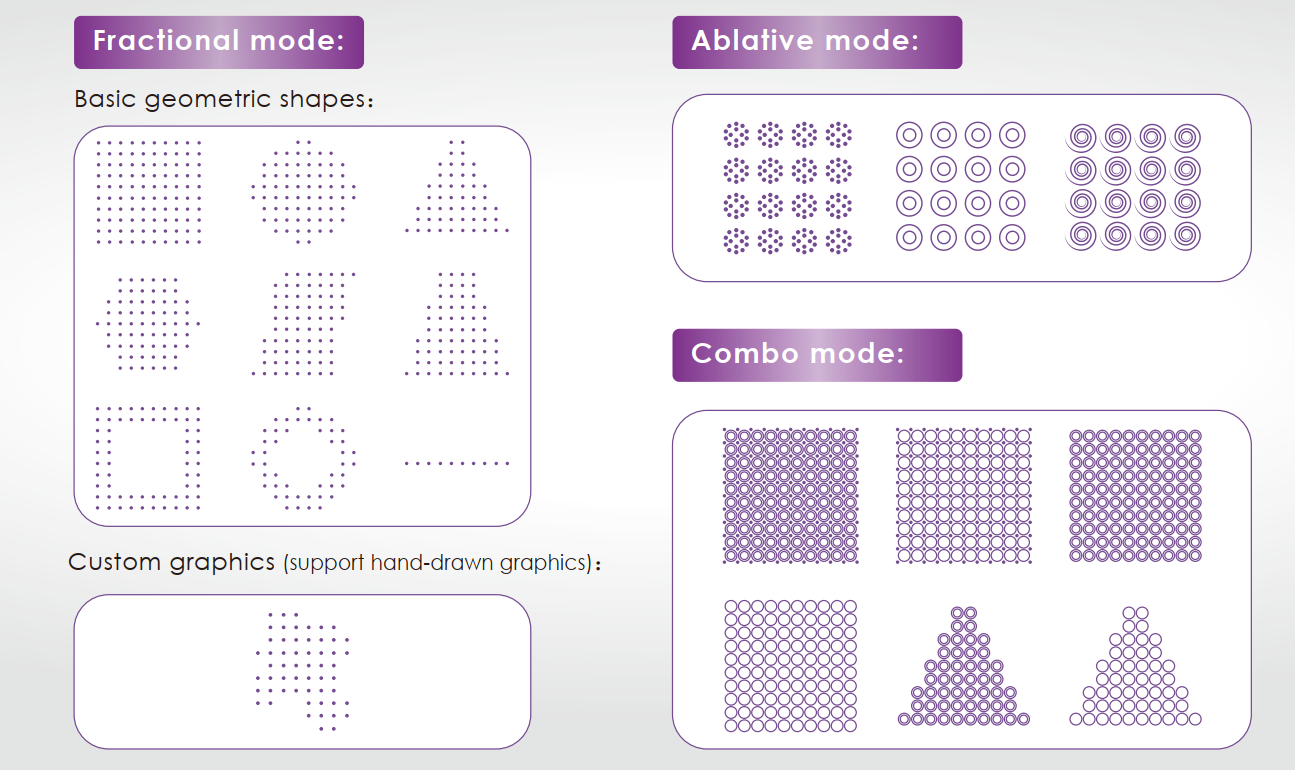

The laser supports different scanning patterns for more precise treatment adjustment, including geometric shapes, fractional matrix patterns, random and uniform filling, Gaussian filling, and custom hand-drawn patterns.

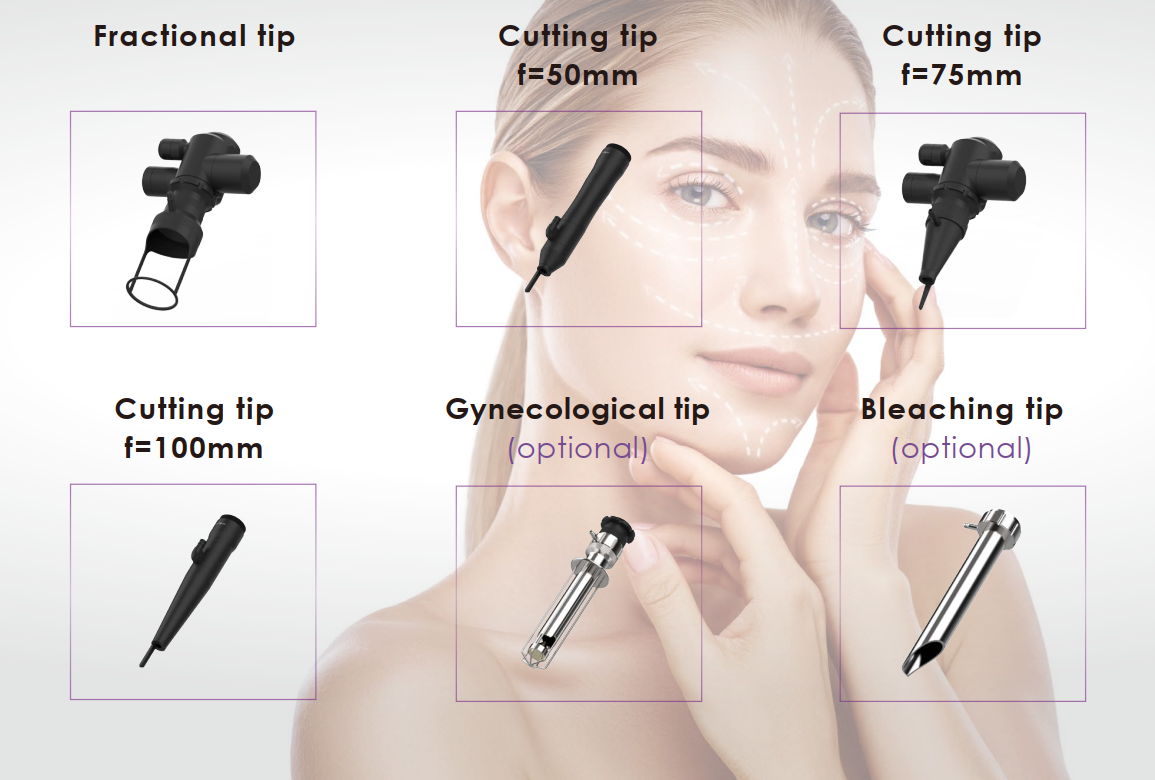

Applicators
The device can be equipped with:
-
fractional handpiece
-
cutting handpieces (f = 50 mm, 75 mm, 100 mm)
-
optional gynecological handpiece
-
optional whitening handpiece
Technical Specifications
-
Laser type: CO2 laser
-
Wavelength: 10.6 μm ± 0.1 μm
-
Output power: 1–40 W
-
Pulse energy: 0.6–1050 mJ
-
Spot size: ≤ 0.1 mm
-
Aiming beam: red diode laser 650 nm, ≤ 5 mW
-
Transmission system: 7-joint articulated spring arm
-
Smoke evacuation: integrated air system
-
Cooling system: air cooling
-
Operating temperature: 5 °C – 40 °C
-
Humidity: ≤ 80%
-
Power supply: 220 V ± 22 V, 50 Hz ± 1 Hz
-
Dimensions: 695 × 550 × 1325 mm
-
Weight: 55 kg
Short Product Intro
Pixel SuperPulse CO2 FX-F01 is an advanced fractional CO2 laser for skin resurfacing, rejuvenation, and texture improvement. Designed for professional aesthetic use, it offers precise treatment control, multiple working modes, and broad application flexibility.
